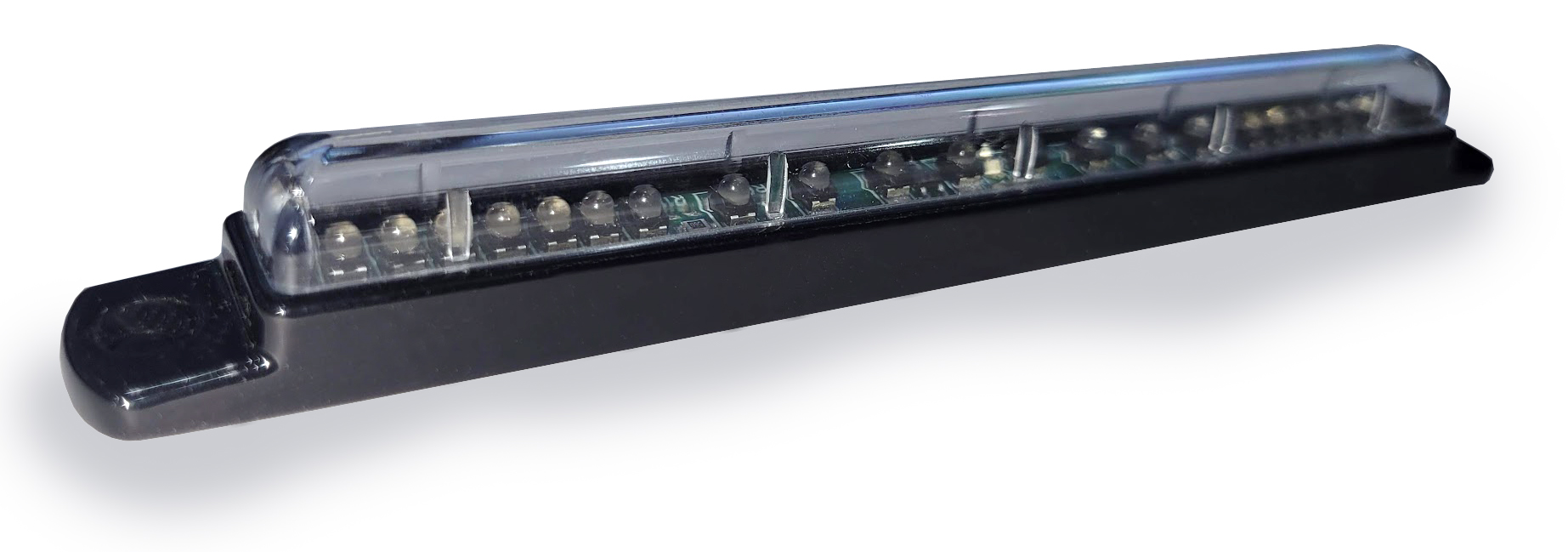

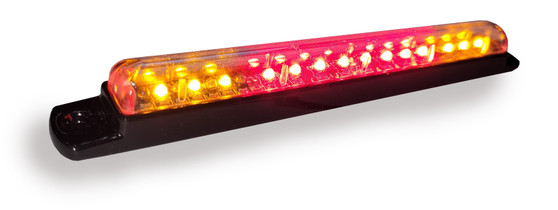

6" Red/Amber [with Turn Signals] LED Light Bar with Black Casing and Clear 'Euro' Lens
Product Description
This Universal Light Bar is useful for a variety of different applications including: Motorcycles, ATVs, Trailers, Campers, Trucks, Cars, Scooters, etc. Since it was designed for all weather operation, this ULB (Universal Light Bar) should surpass all or your expectations and has been manufactured to outlive any application it is installed on. By sealing the electronic components, we have given the ULB the capability to be a water resistant auxiliary light allowing endless possibilities for even the most extreme weather conditions and applications.
Features
- Dual Intensity Function
- Use as Running and/or Brakes!
- Amber LED Turn Signals on Ends
- 18 Ultra-Bright LEDs
- Simple 5 Wire Installation
- Durable Scratch Resistant Lens
- Rubber Protective Gasket Included
- Finished Zinc Base will Never Break!
Installation and Wiring
To mount, place your LED ULB light bar in the area you would like it to be permanently mounted. Once you're sure of the placement, drill 2 (#6) mounting holes and one wire hole with care and then feed the wires through the center hole and attach the ULB with the included mounting screws, washers, and bolts. To wire the ULB tap the black wire to a ground source. Locate your brake light wire and tap the red wire from the ULB to the brake light wire and tap the white wire onto your running light wire. Next you'll tap the violet wire onto your left turn signal wire and the brown wire onto your right turn signal wire (orientation is important, be sure to test before you make a permanent connection).Be sure that the ULB is secure and all of your connections are secure, now you can power up your ignition and check the functionality!
Black Wire: Ground
Red Wire: Brake Light
White Wire: Running Light
Violet Wire: Left Turn Signal
Brown Wire: Right Turn Signal
Specifications
Part Number: 02610
Weight: Less than 1lb
System Requirement: 12VDC
Attachment Method: (2) 1" Black Stainless Steel Screws, Washers, Lock Nuts
Height (in): 3/4"
Length (in): 6"
Width (in): 3/4"
Mounting Holes 5-1/2" On Center
Wire Length: 22"-24"
Wire: 22AWG
Power Draw: 15mA on low intensity and 120mA on high intensity
LED Color: 12 Red (inner) / 6 Amber (outer)
Lens Color: Clear 'Euro'
Material: Finished Zinc
Package Contents: (2) 1" Black Stainless Steel Screws, Washers, Lock Nuts
Color / Finish: Glossy Black Powder Coating
Hardware Included: Yes
Connectors Included: No
Waterproof: No
Water Resistant: Yes
Heat and Vibration Resistant: Yes
Companion Product(s): n/a
Warranty Information
Signal Dynamics Corporation warranties this product at time of purchase to be free from defects in material and workmanship to the original purchaser. Signal Dynamics Corporation's obligation under the warranty is limited to repairing or exchanging the unit if the unit is returned with the postage prepaid to Signal Dynamics Corp. within 1 year from the date of purchase. The warranty is void if the unit has been incorrectly installed, damaged, or tampered with. This warranty specifically limits Signal Dynamics Corporation's liability to unit replacement only and specifically excludes any consequential damage arising from use proper or improper or failure to properly function. A copy of your purchase receipt or other proof of purchase is required when applying for warranty consideration. See full Warranty and Return Policy!
